EDGE Outline

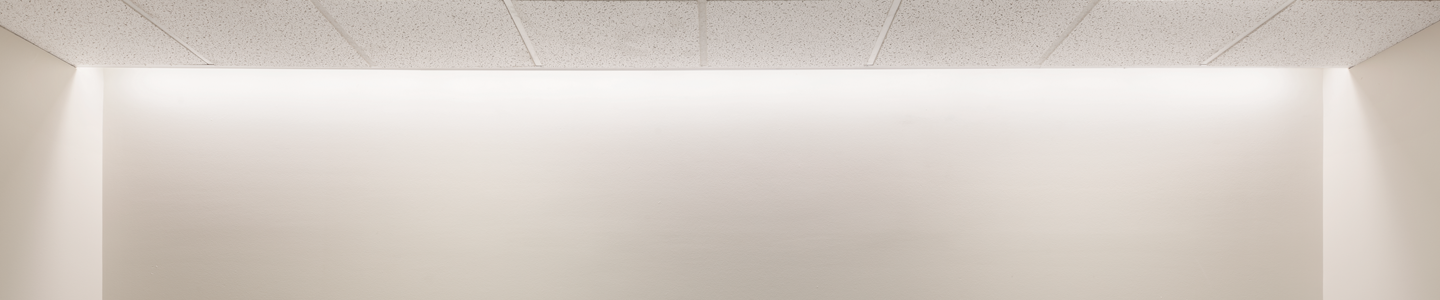

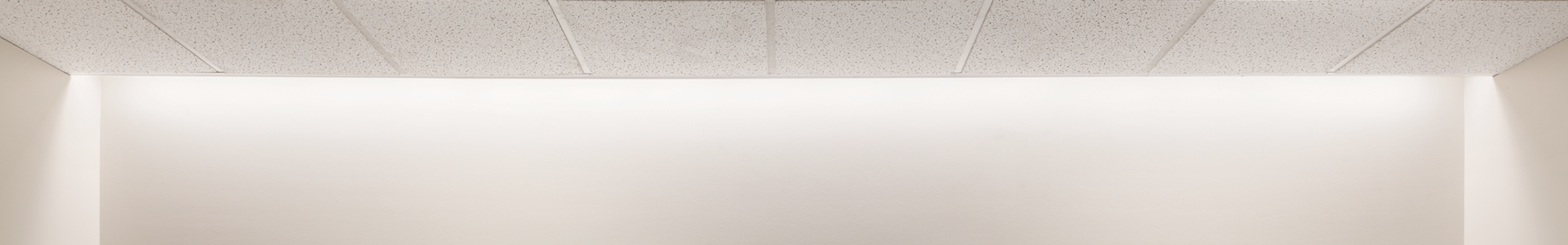

EDGE Outline (EVL) is a dedicated perimeter lighting solution. The compact optical design optimizes the light source and delivers a consistent beam of light fit for any application. EDGE Outline highlights 18 to 20 inches down the wall and then throws the light back into the space. The standard 5-1/4” tall housing allows for a 35° cutoff while the shallow 4-1/4” is ideal for lower plenum areas.


Outline gives you illuminated versatility, allowing you to fill a corridor with light or create a glow around the perimeter of a larger space. Specify inside corners, outside corners, and end fillers to keep the look continuous in any application.

  • Extruded aluminum trim with formed cold rolled 20-gauge steel back box housing.

  • EVL LED offered with a 5-year limited warranty. Covers LED, driver and fixture.

  • UL and cUL listed. IC rated.

  • Approved for dry/damp location unless otherwise noted.

  • Room-Side Maintenance for LED system.

  • Buy American Act compliant.
