EDGE 4 Recessed

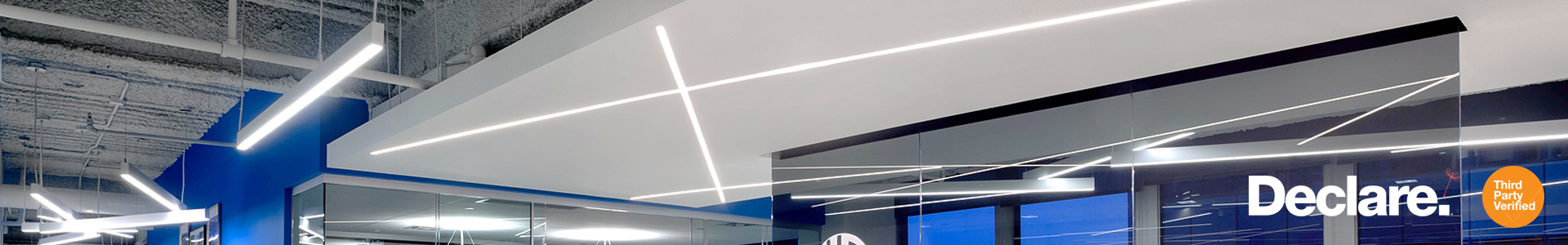

The EDGE 4 Recessed (EV4) allows for perfect lines of light in individual fixtures and continuous rows. Specify every detail of each fixture to make it blend into the space or stand out as a statement.
Multiple shielding options allow you to sculpt the light while standard corners, X’s and T’s ensure that light stays uninterrupted. Engineered acrylic provides just the right amount of diffusion with minimal light loss from the lens. The combination of diffuse and reflective material provides optimal lens illumination, efficacy, and control of the beam shape.
Available to be specified with Field Cuttable Extensions. See Spec Sheet and Installation Instructions for more information.
This product is available with Standard Modifications. See the Spec Sheet for specific options and more information.
-
Extruded aluminum trim with formed cold rolled 18-gauge steel back box housing. Highly reflective white painted steel reflector.
-
5-year limited warranty covers LED, driver and fixture.
-
ETL Listed conforming to UL1598 in US and CSA 250 in Canada.
-
Approved for dry/damp location unless otherwise noted.
-
Maximum fixture weight is 15 lbs. per 4 ft fixture.
-
Room-Side Maintenance for LED system.
-
Buy American Act compliant.
-
