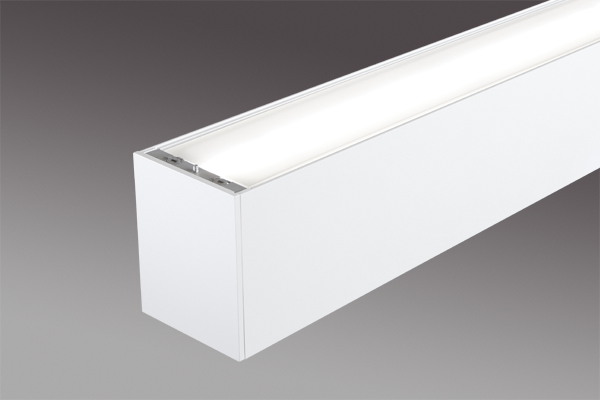

EDGE EX4 Direct/Indirect
The EDGE EX4 Direct/Indirect (EX4DI) allows for perfect lines of light in individual fixtures and continuous rows. Specify every detail of each fixture to make it blend into the space or stand out as a statement.
Multiple shielding options allow you to sculpt the light while standard corners, X’s and T’s ensure that light stays uninterrupted. Engineered acrylic provides just the right amount of diffusion with minimal light loss from the lens. The combination of diffuse and reflective material provides optimal lens illumination, efficacy, and control of the beam shape.
The patented Straight EDGE Joint cinches fixtures together, leaving no space for light leaks and forming straight lines in the process. Multiple fixtures in a run tend to “snake” once they are joined. The Straight EDGE Joint has a pivot point at each connection that allows the individual fixtures to align perfectly for a straight run. A revolutionary design like nothing else in the industry. Check out a quick video of it here.
This product is available with Standard Modifications. See the Spec Sheet for specific options and more information.
-
6063-T6 Extruded aluminum housing. Highly reflective white painted steel reflector.
-
5-year limited warranty covers LED, driver and fixture.
-
ETL listed conforming to UL 1598 in US and CSA 250 in Canada.
-
Approved for dry/damp location unless otherwise noted.
-
Maximum fixture weight is 25 lbs. per 4 ft fixture.
-
Room-Side Maintenance for LED system.
-
Buy American Act compliant.
-
