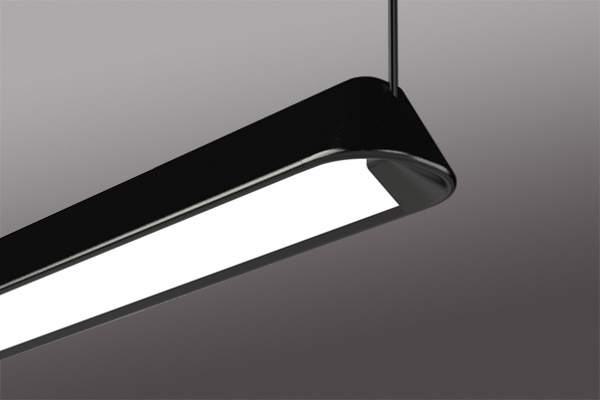

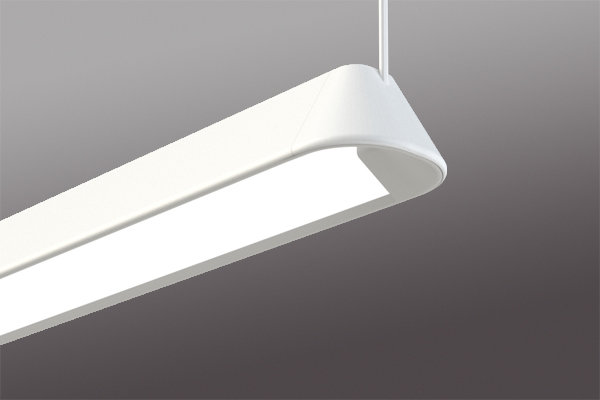

Sorrel Down

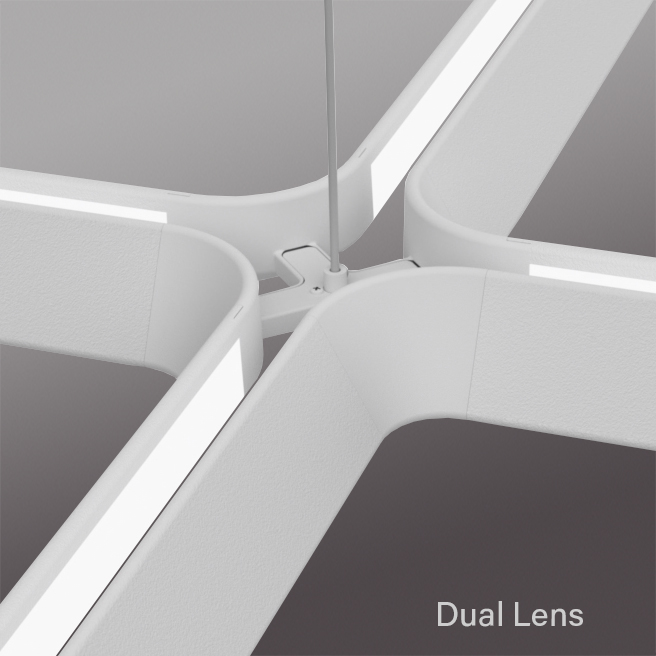

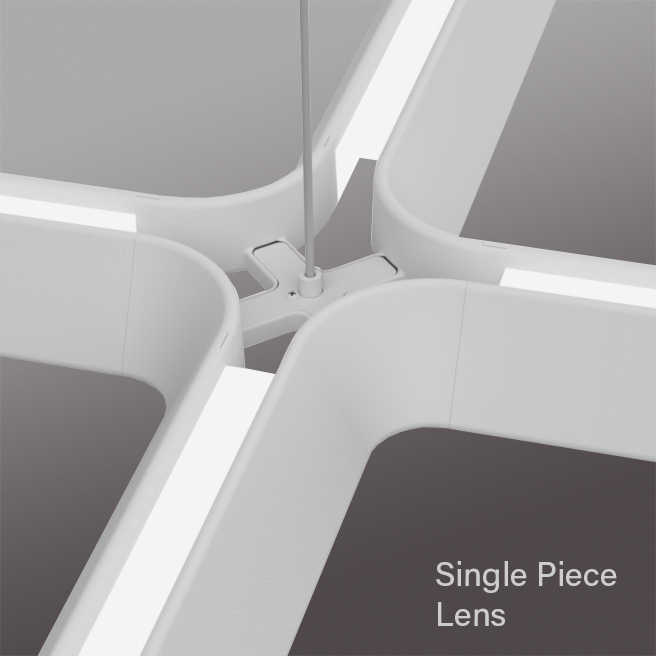

Sorrel DOWN (S3D) distributes lighting at 20% uplight/ 80% downlight. Sorrel DOWN is a great solution when task-oriented work is the key application need while allowing for a portion of the light to escape upward to prevent dark ceiling planes. The Sorrel DOWN is offered with 2 different lensing options: The dual open frame is for application spaces where the mounting application is 24” or greater from the ceiling. A one-piece lens offering, is meant to be used when mounting applications are less than 24” from the ceiling.

This unique linear suspended direct/indirect luminaire features an open center design with parallel dual rails forming a nominal 3” x 4” housing. The light source is shielded within the open housing providing comfortable yet functional illumination. The Sorrel can be configured into linear rows, individual geometric forms, or sprawling patterns.

Angled rails create a unique open aperture aesthetic while providing functional output
Extruded aluminum housing rails with die-cast aluminum end caps
Minimized suspension and power cable adds to unobtrusive appearance
Available in 2’, 3’, 4’, 5’, 6’, 7’, 8’ linear lengths, with 1-ft increments on continuous runs

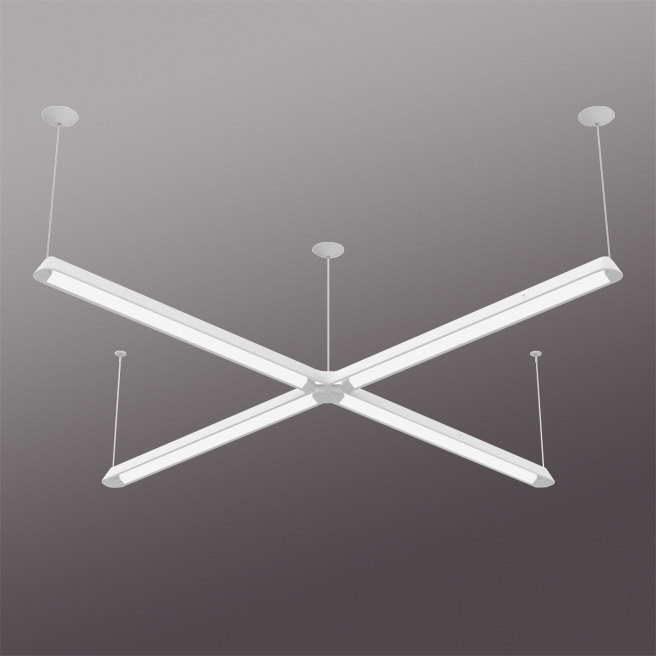

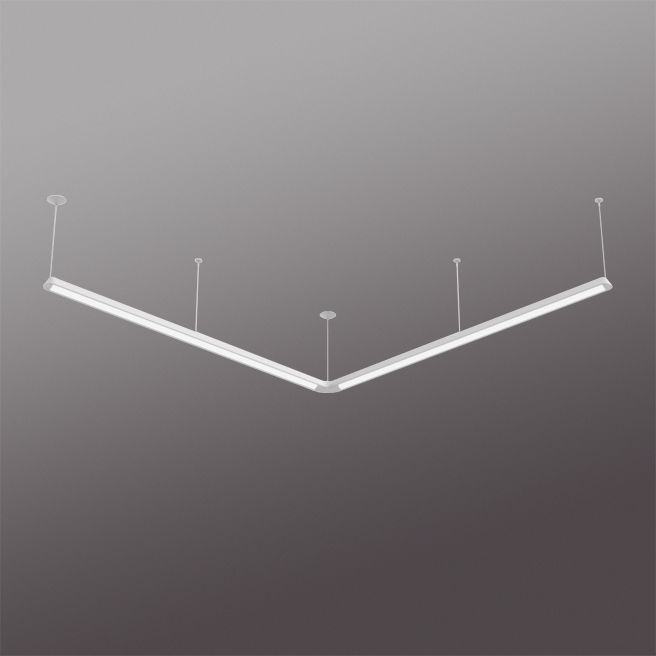

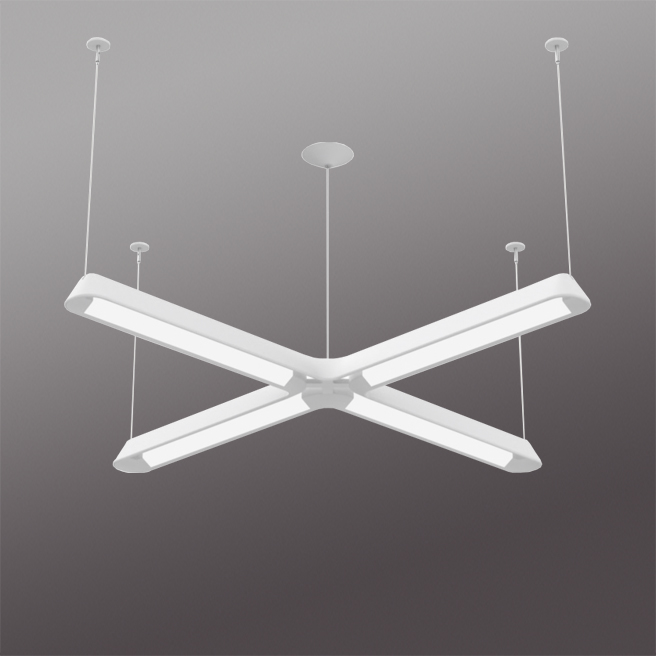

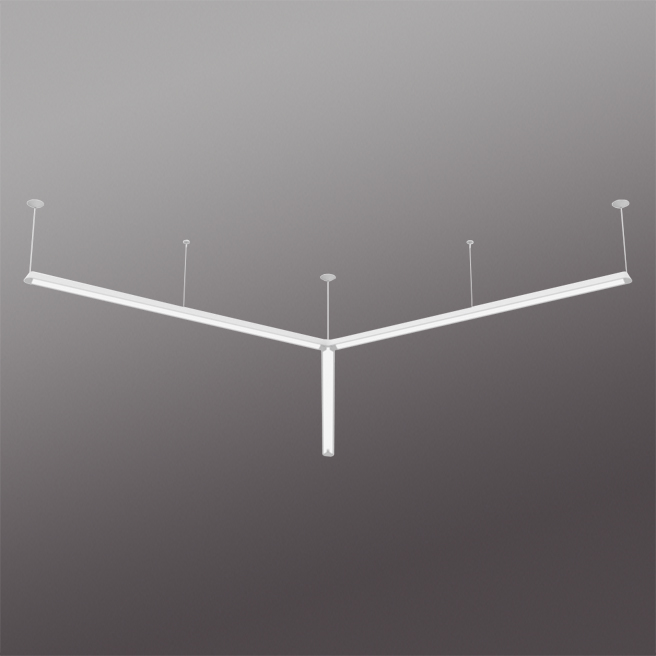

Standard 90° ”L” connectors, 120° “Y” connectors, and 45° “X” connectors provide design flexibility
Multiple lumens outputs, up to 1000 lumens per foot with 80CRI or 90CRI options (with up to 1250 custom lumen options)
Down (D) fixture distribution is 80% direct / 20% indirect
