ADEO 2x4

The ADEO 2x4 (AD24) is an architectural fixture that creates a soft, natural light. The single-piece, co-extruded center channel lens produces a fully luminous look across the face of the fixture. Whether you’re an eco-conscious designer or a budget-focused contractor, you’ll find a lighting solution among Pinnacle’s family of ADEO luminaires.

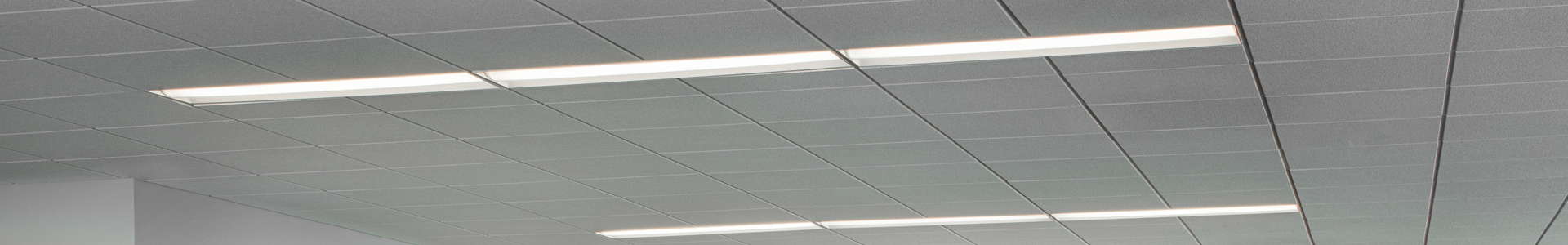

ADEO is offered in 1x1, 1x4, 2x2, and 2x4 form factors, which can be modified with aesthetic lens treatments or practical structural additions to meet your design needs. The formed 20 gauge cold rolled steel housing and highly reflective die-formed white painted reflector create a highly efficacious fixture in all configurations.



This product is available with Standard Modifications. See the Spec Sheet for specific options and more information.

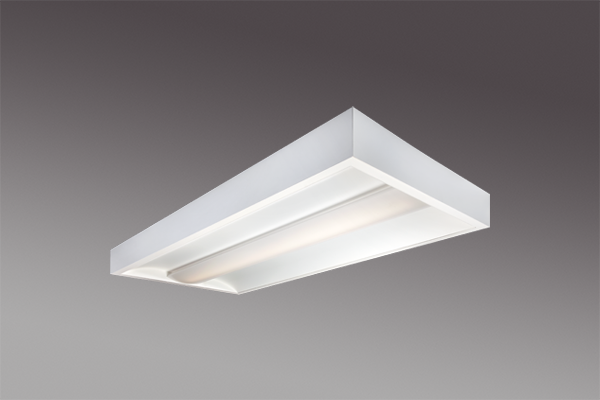

  • Surface Mount option available.

  • LED offered with a 5-year limited warranty. Covers LED, driver and fixture.

  • UL and cUL Listed, LO, MO, and HO lumen packages are IC Rated.

  • Approved for dry/damp location unless otherwise noted.

  • Maximum fixture weight is 28 lbs - Surface Mount Box adds 10 lbs.

  • Room-Side Maintenance for LED system. Wiring access available on top of housing.

  • Buy American Act compliant.
